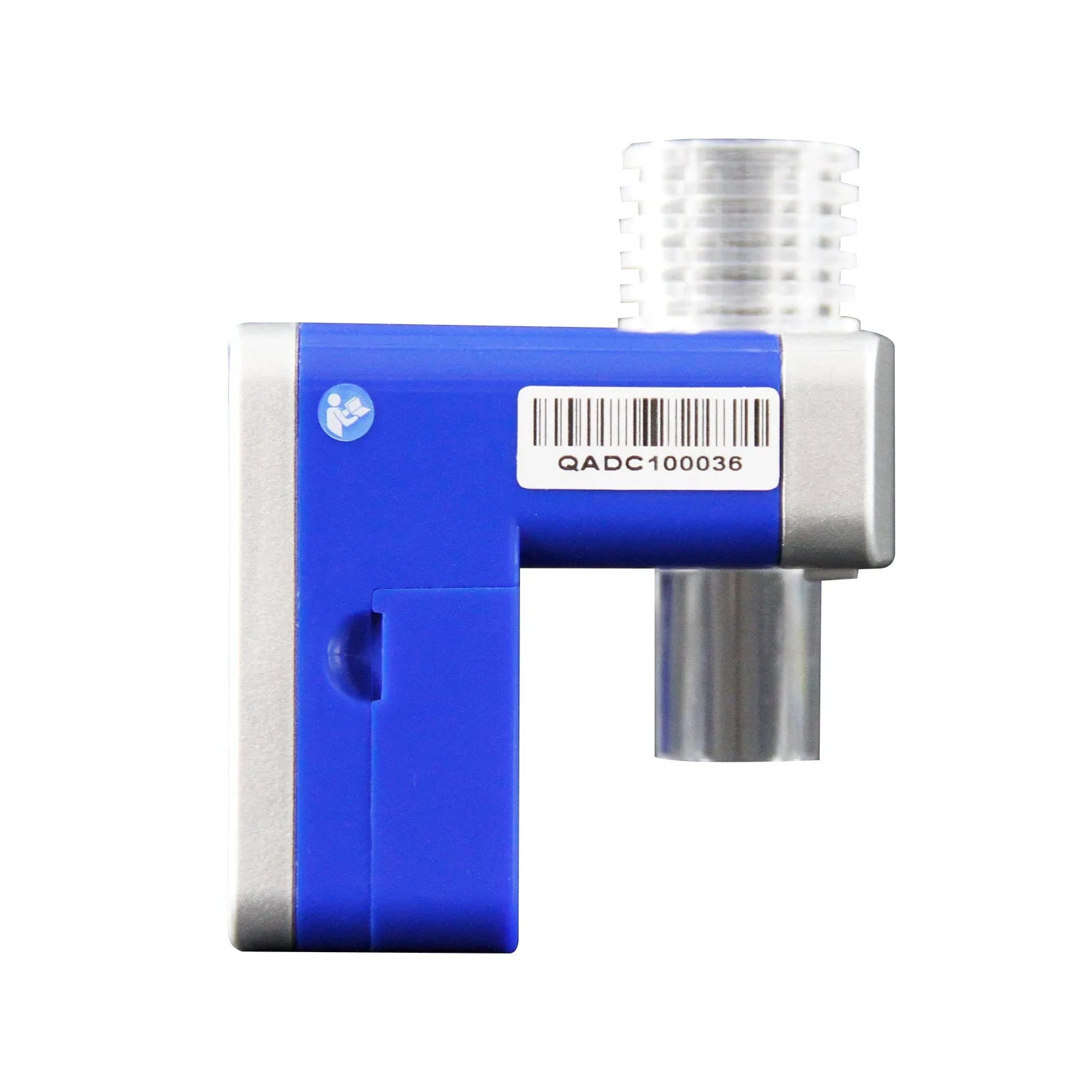

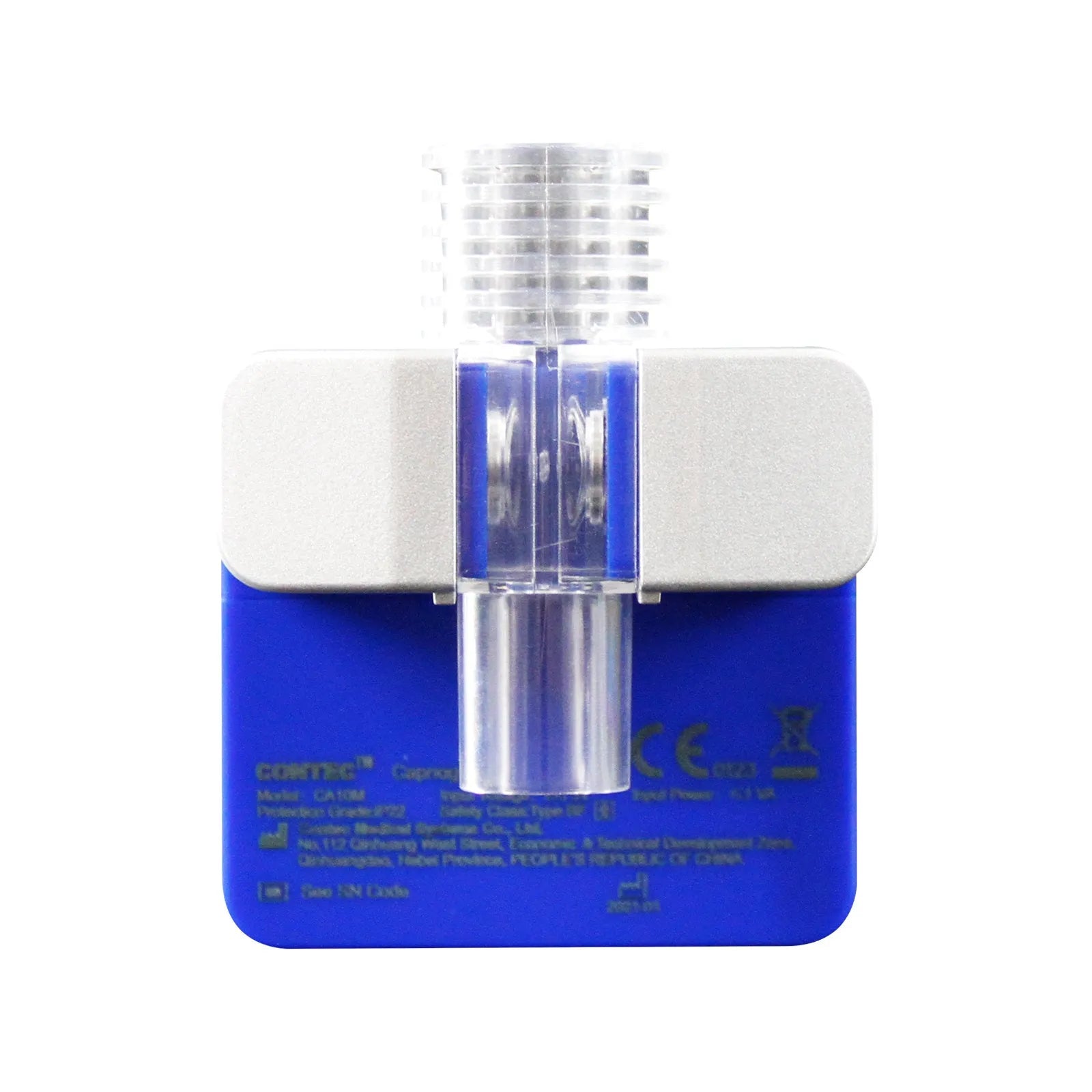

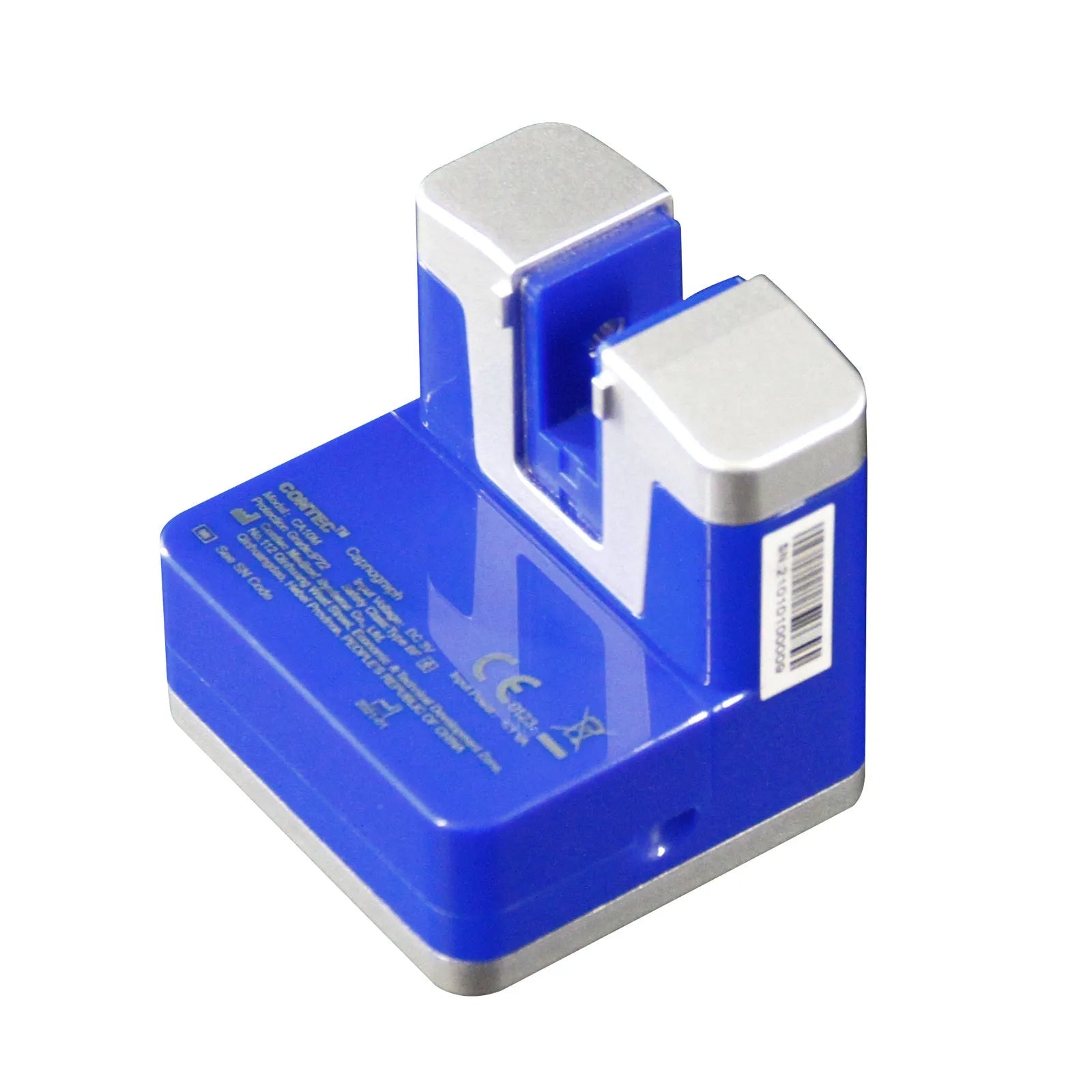

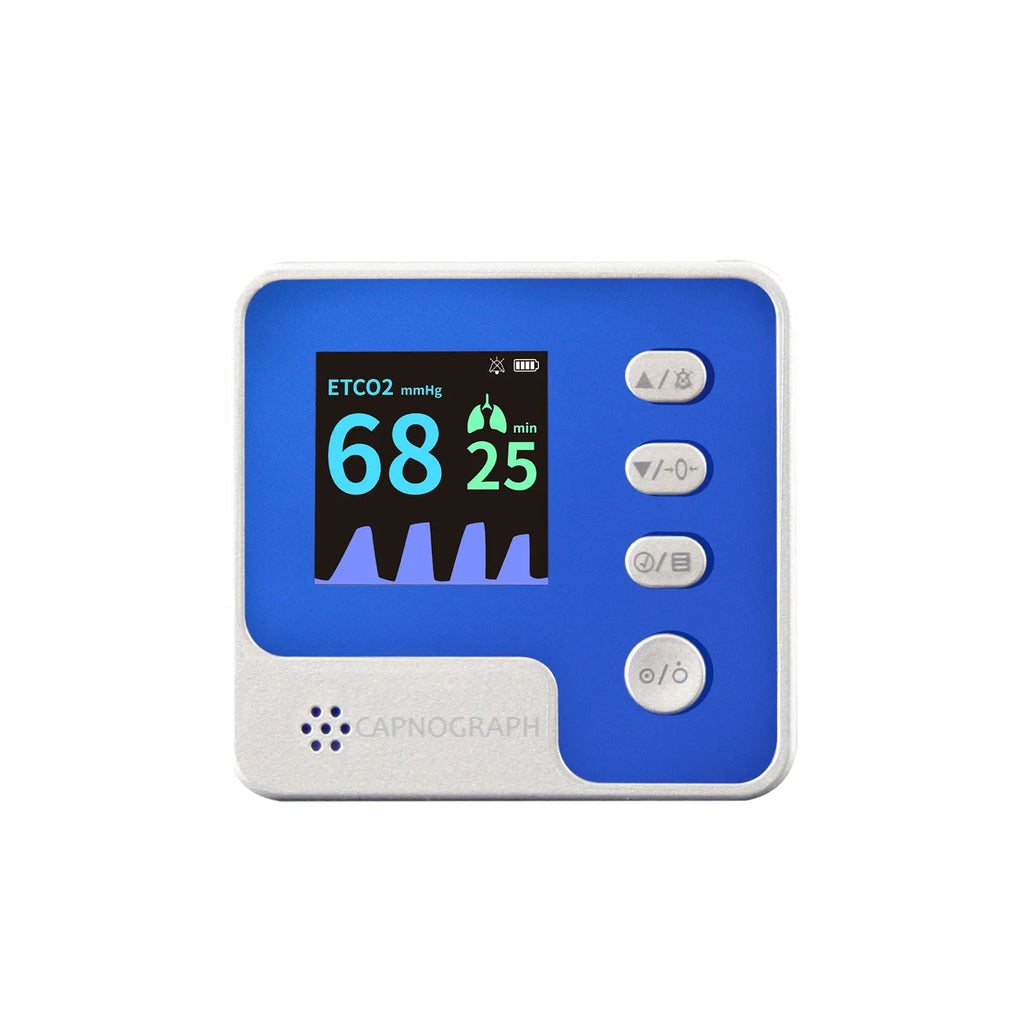

Veterinary Mainstream CO2 Capnograph – ETCO2 Monitor CA10M for Pet Anaesthesia and ICU

This mainstream CO2 capnograph, model CA10M, is designed for monitoring end-tidal carbon dioxide (ETCO2) and airway respiratory rate (AwRR) in pets during clinical procedures. It connects directly to the pet's respiratory tract via an air adapter and respiratory connection tube, providing real-time data that reflects ventilation function, pulmonary circulation, and alveolar ventilation. With a preheat time of just 15 seconds and a response time under three seconds, it delivers rapid, accurate readings. The device includes audible and visual alarms with adjustable limits, plus a low battery warning, making it a practical choice for veterinary anaesthesia, cardiopulmonary resuscitation, prehospital emergency care, ICU, and post-anaesthesia recovery.

Features and Performance Specifications

The CA10M offers precise measurement capabilities with multiple safety and convenience features. Its mainstream measurement method ensures direct and reliable data without sampling lines.

End-tidal CO2 Measurement

Measures ETCO2 from 0 to 150 mmHg with a resolution of 1 mmHg. Accuracy is within ±2 mmHg from 0–40 mmHg, ±5% of readings from 41–70 mmHg, ±8% from 71–100 mmHg, and ±10% from 101–150 mmHg.

Respiration Rate Measurement

Measures respiration rate from 2 to 150 rpm with a resolution of 1 rpm and an accuracy of ±1 rpm. This allows monitoring of both slow and rapid breathing patterns in pets.

Alarm and Compensation Features

The unit has audible and visual alarms with adjustable over-limit settings for ETCO2 and respiration rate, plus a low battery alarm. It includes atmospheric pressure and temperature compensation, enabling use in highland environments (700–1060 hPa).

Physical Design and Power

The capnograph is compact and lightweight, designed for portability in veterinary settings. Its protective rating and battery life support extended monitoring.

Dimensions and Weight

The monitor measures 59 × 56 × 59.5 mm and weighs 92 g including batteries, making it easy to carry and position near the patient.

Power Supply and Battery Life

Runs on two AAA dry batteries (DC 3V) with an input power of ≤1 VA. Battery life is up to four hours of continuous use, sufficient for most procedures.

Protection and Safety

Rated IP22 for protection against water and dust ingress. The device is an internally powered unit with a type BF applied part, ensuring electrical safety during patient contact.

Uses and Clinical Value

The CA10M is suited for various veterinary scenarios where respiratory monitoring is critical. Its ease of use and fast response make it a dependable tool.

Anaesthesia and ICU Monitoring

During anaesthesia, it helps assess ventilation adequacy and detect changes in pulmonary circulation. In ICU settings, it provides ongoing respiratory status tracking for critically ill pets.

Emergency and Prehospital Care

Ideal for prehospital emergency care and cardiopulmonary resuscitation, where rapid CO2 detection can guide interventions and assess return of spontaneous circulation.

Post-anaesthesia Recovery

Supports monitoring during recovery to ensure normal respiratory function returns, reducing the risk of undetected hypoventilation.

Benefits and Practical Value

This capnograph combines accurate measurement with user-friendly features, offering reliable support for veterinary professionals.

Quick Setup and Operation

With 15-second preheat, under 3-second response, and straightforward calibration (zero calibration by user), it fits seamlessly into busy clinical workflows.

Portable and Low Maintenance

Compact size, battery power, and IP22 protection allow use in various locations. The device has an “Adapter off” prompt to prevent errors, and no complex consumables.

Why Choose This Product

Provides essential ETCO2 and respiration rate data with verified accuracy, alarms, and compensation for altitude, all in a durable, portable package designed specifically for veterinary use.
