Silicon Labs EFR32MG21 Zigbee 3.0 USB Dongle for Smart Home Integration

This Silicon Labs EFR32MG21 Zigbee 3.0 USB dongle serves as a wireless bridge, enabling communication between Zigbee-compatible smart home devices and your home automation system. Designed for users seeking to build or expand a Zigbee network, it comes ready to use with EmberZNet Serial Protocol version 8 (EZSP v8) pre-installed. The device facilitates connections with various Zigbee end devices like sensors, switches, and lights, potentially working with other gateways that adhere to Zigbee standards, though specific compatibility beyond confirmed platforms should be verified individually. Its primary function is to translate Zigbee wireless signals into data your home assistant software can understand.

Features and Construction

The dongle combines specific hardware and firmware to create a functional Zigbee coordinator. Its design focuses on providing the necessary radio and processing capabilities to manage a Zigbee network, packaged in a convenient USB form factor.

Material and Build

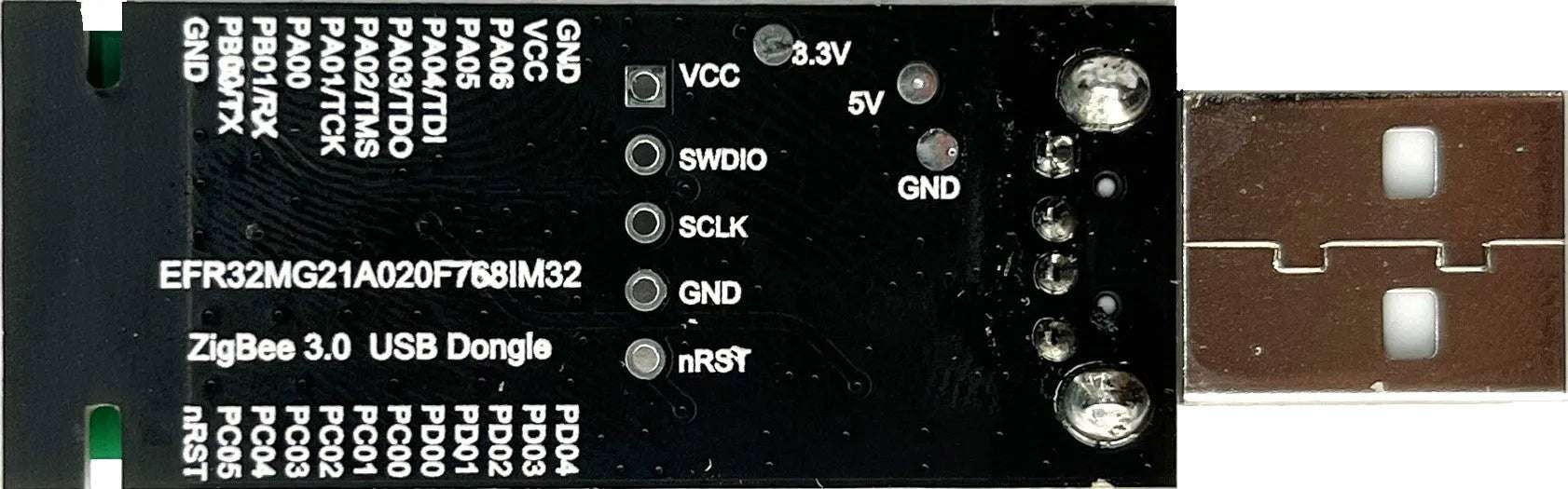

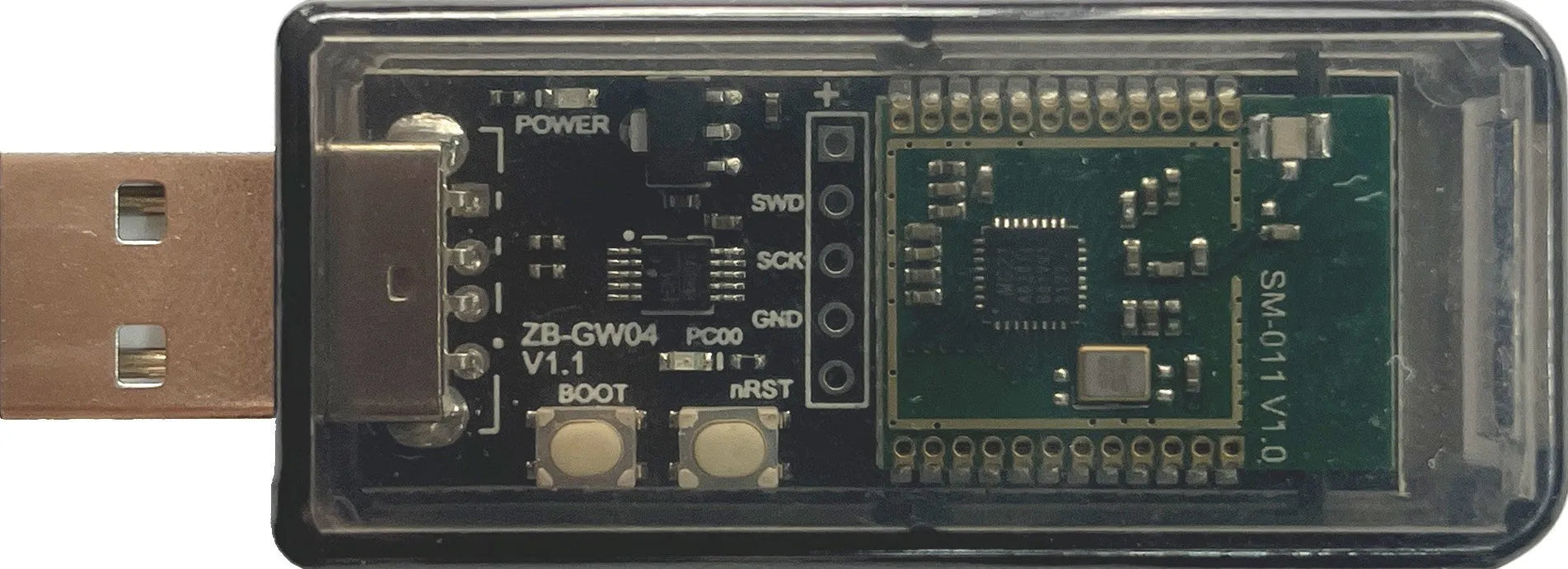

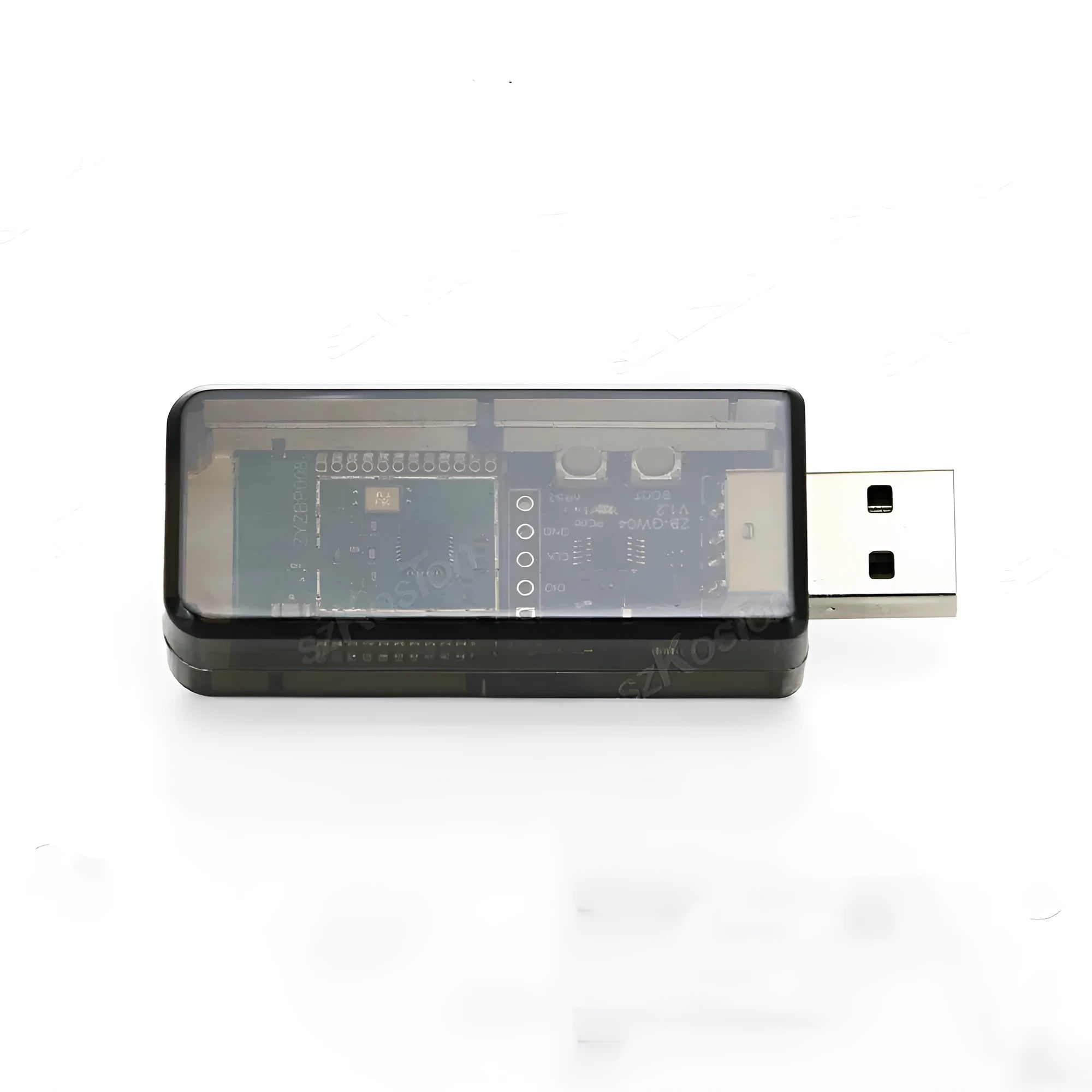

The physical housing of the dongle is constructed from a plastic shell, which encases the internal electronics. The core components include a Silicon Labs EFR32MG21 microcontroller, which handles the Zigbee protocol and radio functions, paired with a CH340E chip that manages the USB serial communication with the host computer. This combination forms the basis for the device's operation, translating between USB data and Zigbee wireless signals.

Size and Practical Fit

The device is presented as a standard USB dongle, implying a compact form designed to plug directly into a USB port on a computer, Raspberry Pi, or similar host device without requiring external cables for its main connection. Its plastic shell suggests a lightweight build suitable for permanent installation in a home automation setup, where it can remain connected to facilitate continuous Zigbee network coordination.

Uses and Placement

This dongle is intended for users running home automation software that requires a Zigbee radio to communicate with devices. Its placement is typically near the central home automation hardware to ensure good radio coverage for the connected Zigbee devices throughout the intended area.

Event or Professional Use

For advanced setups or testing environments, the dongle supports Over-The-Air (OTA) firmware updates via its UART interface, a feature useful for developers or enthusiasts wishing to update the coordinator firmware without physical intervention. The update process is initiated by a specific button sequence: pressing the BOOT button, then pressing and releasing the nRST button, before finally releasing the BOOT button. This allows for maintenance and potential feature enhancements after deployment.

Everyday Home Use

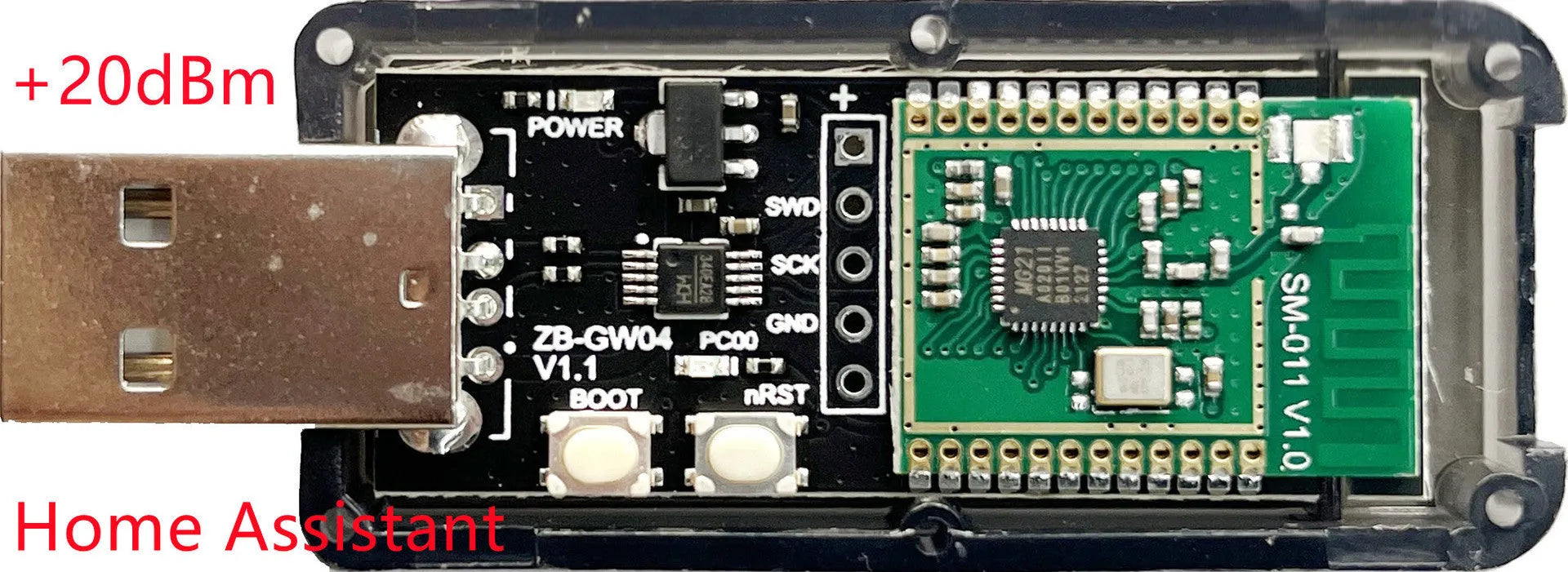

In a standard home automation context, the dongle's primary role is to act as the central Zigbee coordinator. Once plugged in and configured with supported software like ZHA in Home Assistant or Zigbee2MQTT, it forms the heart of a wireless network that can control lights, locks, sensors, and other Zigbee-enabled products. The +20dBm output gain from its PCB antenna helps provide sufficient signal strength to cover a typical household area, aiming for reliable communication with all paired devices.

Benefits and Buying Value

The value of this product lies in its specific component selection and pre-configured state, which aims to reduce setup complexity for the end-user compared to sourcing and flashing a generic development board.

Reuse and Low Maintenance

The device is designed for continuous operation as part of a home automation system. The plastic shell offers basic protection for the internal circuitry during normal use. The inclusion of OTA update functionality via UART provides a path for potential future firmware updates, which could address issues or add features, contributing to the product's longevity in a user's setup without requiring physical replacement.

Why Choose This Product

This dongle is positioned for users who want a dedicated, pre-assembled Zigbee coordinator based on the Silicon Labs EFR32MG21 platform. The key practical strengths are its pre-flashed EZSP v8 firmware, eliminating an initial flashing step, and its stated compatibility with popular open-source home automation integrations like ZHA and Zigbee2MQTT. The specified +20dBm output gain and PCB antenna are concrete features aimed at ensuring stable network performance for a home Zigbee mesh.
