PWM DC Motor Governor for 5V to 35V Speed Regulation with 5A Output and Adjustable Control

This PWM DC motor governor provides precise speed control for DC motors operating within a 4.5V to 35V range, making it suitable for various applications requiring adjustable motor performance. With a maximum output current of 5A and output power reaching 90W, it handles moderate motor loads while offering smooth regulation through its 20kHz PWM frequency. The governor's compact dimensions of 30mm length by 26mm width (excluding handle) by 14mm height allow for installation in space-constrained environments, and its low 7μA static current in standby state helps minimise unnecessary power consumption when not actively adjusting motor parameters.

Features and Construction

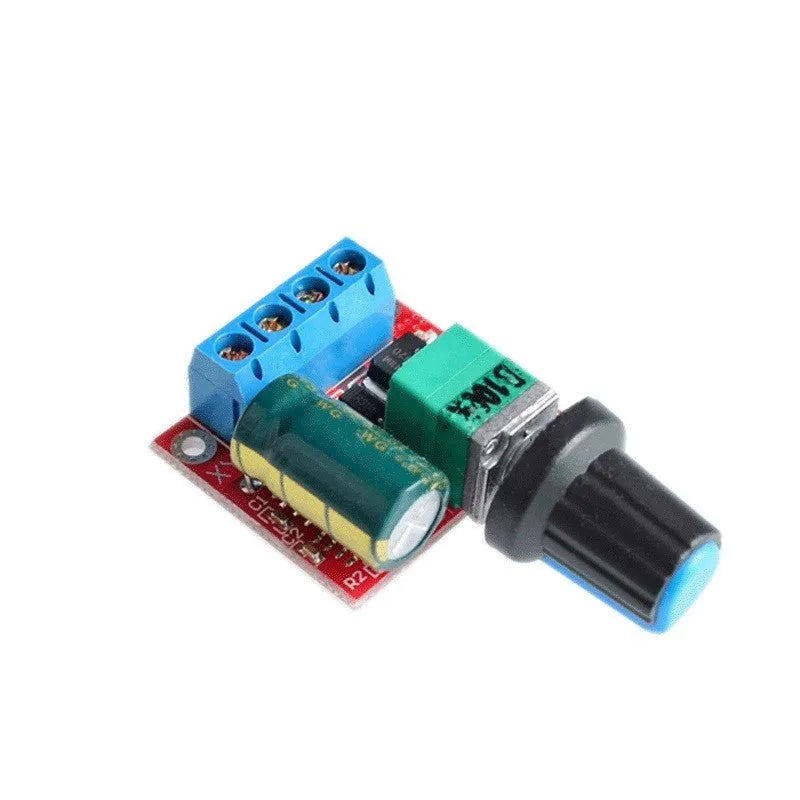

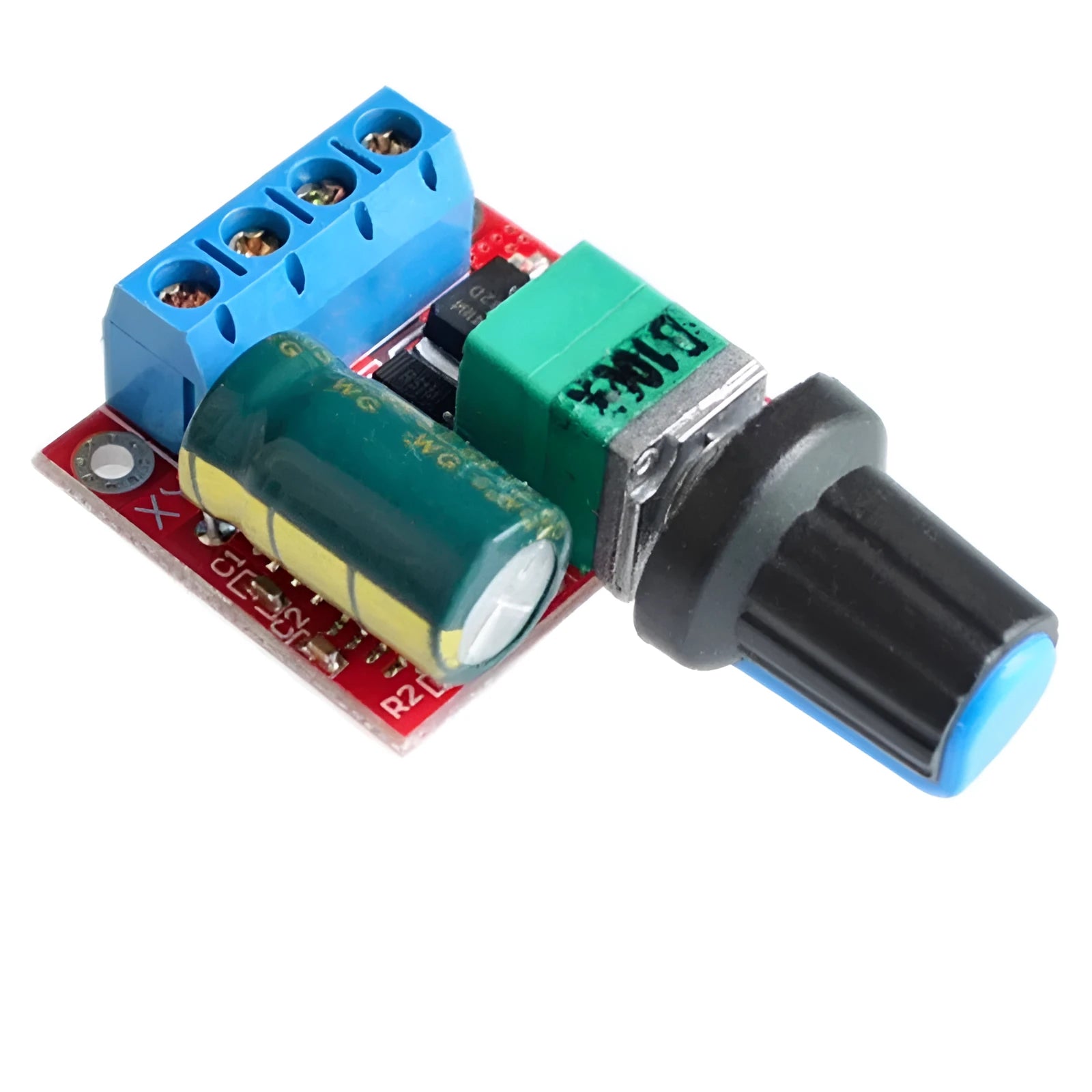

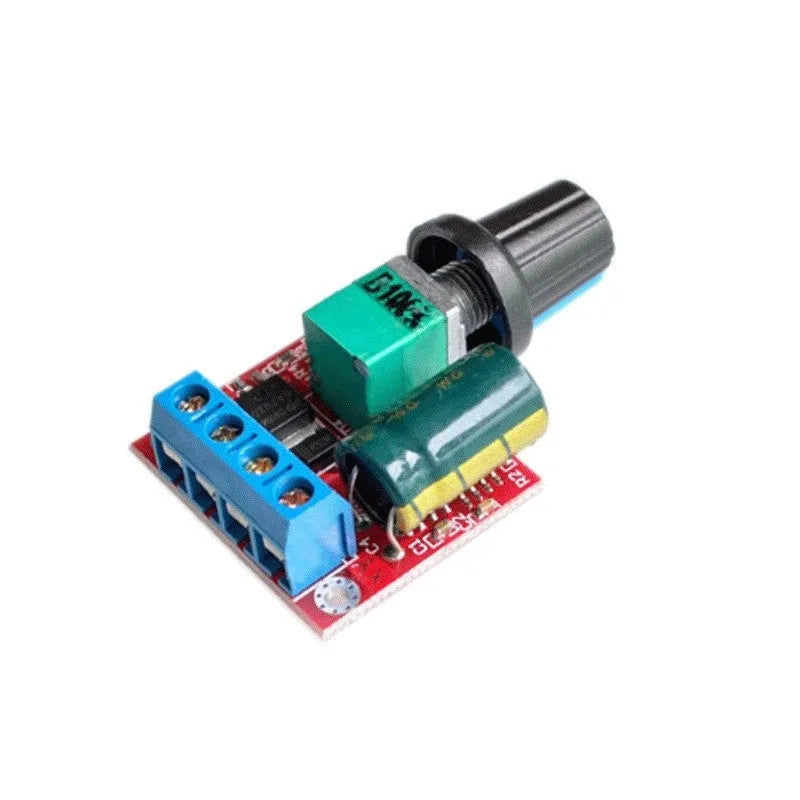

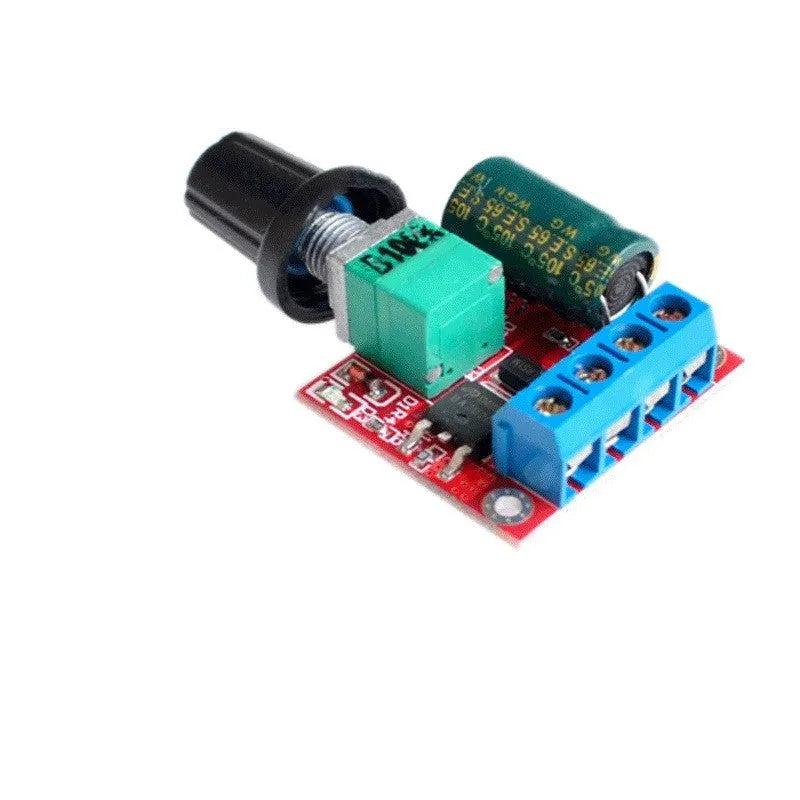

The governor's design centres around pulse-width modulation technology that enables precise motor speed adjustment through duty cycle variation. Its construction incorporates a potentiometer knob that users can turn to change the output duty cycle from 1% upward, directly affecting connected motor speed without complex programming or external controllers.

Material and Build

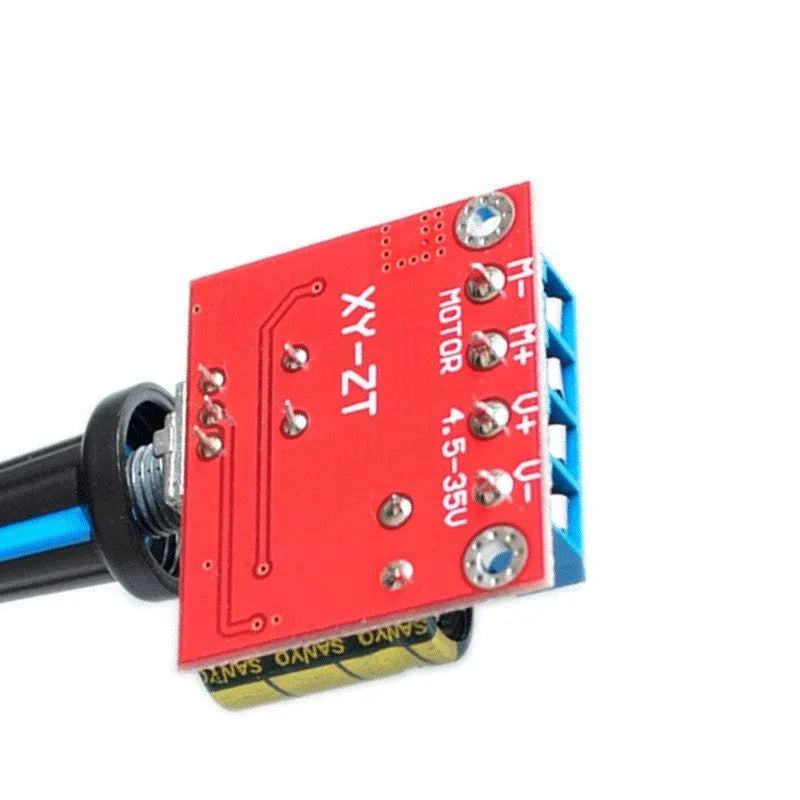

Built with electronic components designed for DC motor regulation, the governor operates exclusively on direct current within its specified voltage range. The unit cannot be connected directly to alternating current sources like standard household 220V AC mains, as this would cause damage to its internal circuitry. The physical construction includes connection points for DC power input and motor output, with clear polarity indications to help prevent incorrect wiring that could potentially damage the device.

Size and Practical Fit

Measuring 30mm in length by 26mm in width (excluding the adjustment handle) by 14mm in height, the governor maintains a compact footprint suitable for integration into various projects and enclosures. The dimensions allow for placement in tight spaces where motor control is needed without requiring extensive mounting area or special accommodation. The exclusion of the handle from the width measurement provides accurate sizing information for planning installations where the control knob extends beyond the main body dimensions.

Uses and Placement

This governor finds application in scenarios where DC motor speed requires adjustment, whether for prototyping, hobby projects, or specific equipment requiring variable motor performance. Its voltage range accommodates common DC power sources while providing sufficient current for motors drawing up to 5A at appropriate voltages within the operating window.

Event or Professional Use

In professional or event settings, the governor can serve equipment requiring adjustable DC motor speeds, such as display mechanisms, controlled movement systems, or adjustable ventilation where fan speed needs modulation. The 20kHz PWM frequency provides smooth regulation that reduces audible motor noise sometimes associated with lower-frequency controllers, while the wide 1% to 100% duty cycle range offers substantial speed variation capability. Proper installation requires attention to polarity and voltage compatibility to ensure reliable operation without damage to the governor or connected equipment.

Everyday Home Use

For home workshop or hobby applications, this governor enables adjustment of DC motor speeds in tools, model projects, or custom installations where fixed-speed operation proves limiting. The potentiometer knob provides immediate tactile control without requiring additional interfaces or programming knowledge, making it accessible for users with varying technical backgrounds. When motor direction doesn't match expectations, the wiring sequence can be adjusted to reverse rotation, providing additional flexibility for different mounting configurations or application requirements.

Benefits and Buying Value

The governor offers practical value through its combination of voltage range, current capacity, and straightforward adjustment method. Its design prioritises functionality within its operational parameters while maintaining compatibility with common DC motor types and power sources encountered in various projects.

Reuse and Low Maintenance

The governor requires minimal maintenance beyond proper electrical connections and adherence to its operational guidelines regarding voltage type and polarity. Its solid-state design without moving mechanical parts (aside from the potentiometer) reduces points of potential wear, while the low standby current helps conserve power when the connected motor isn't running. Following the provided connection instructions regarding DC-only operation and correct polarity helps ensure the governor remains functional for repeated use across different applications or projects.

Why Choose This Product

This governor provides a practical solution for DC motor speed control within its specified 4.5V to 35V range and 5A current capacity. The combination of adjustable duty cycle via potentiometer, 20kHz PWM frequency, and compact dimensions addresses needs for variable motor speed without complex control systems. Its design focuses on core functionality for motor regulation rather than extensive features that might increase cost or complexity while providing less practical benefit for basic speed adjustment requirements.
