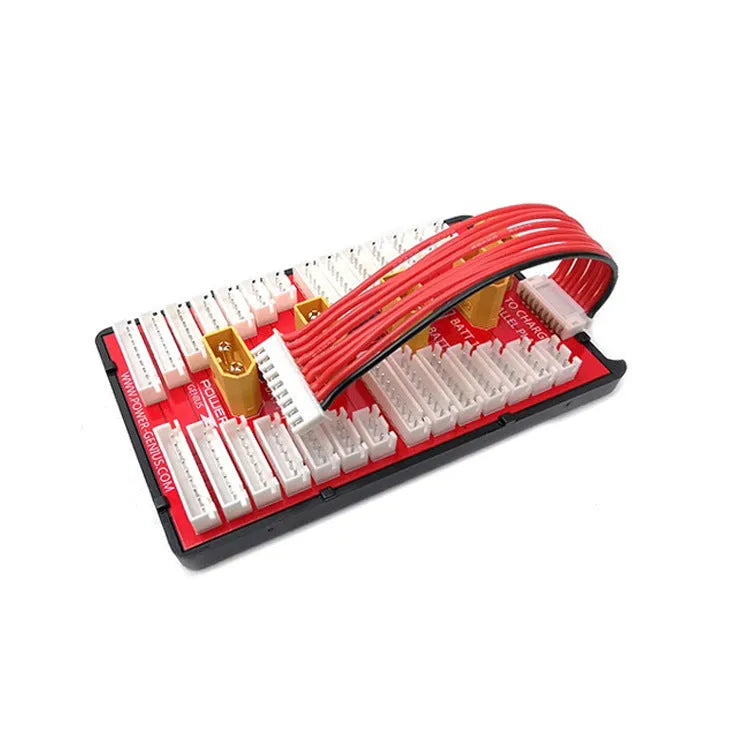

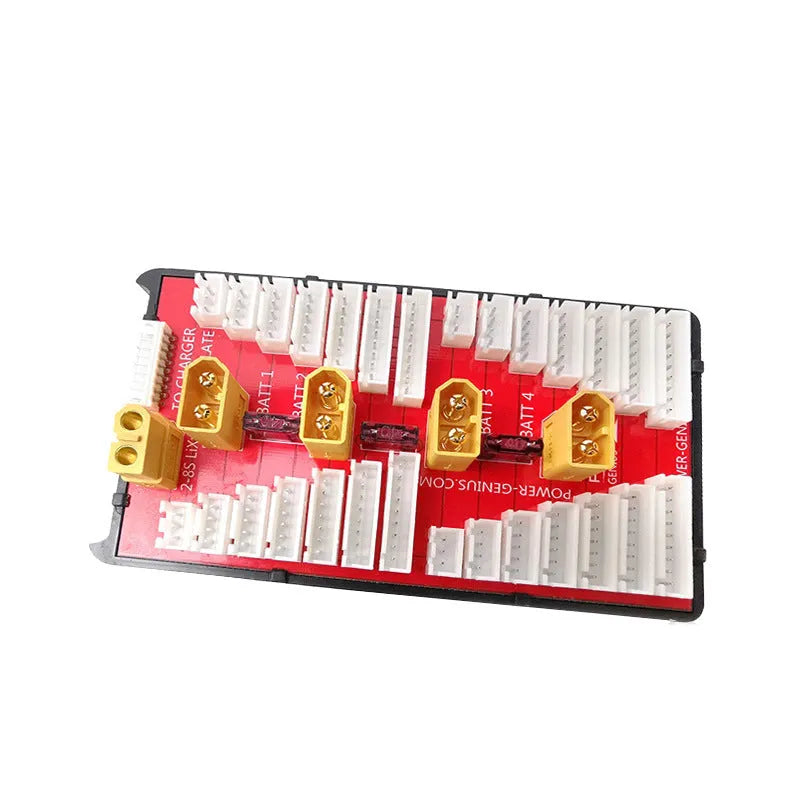

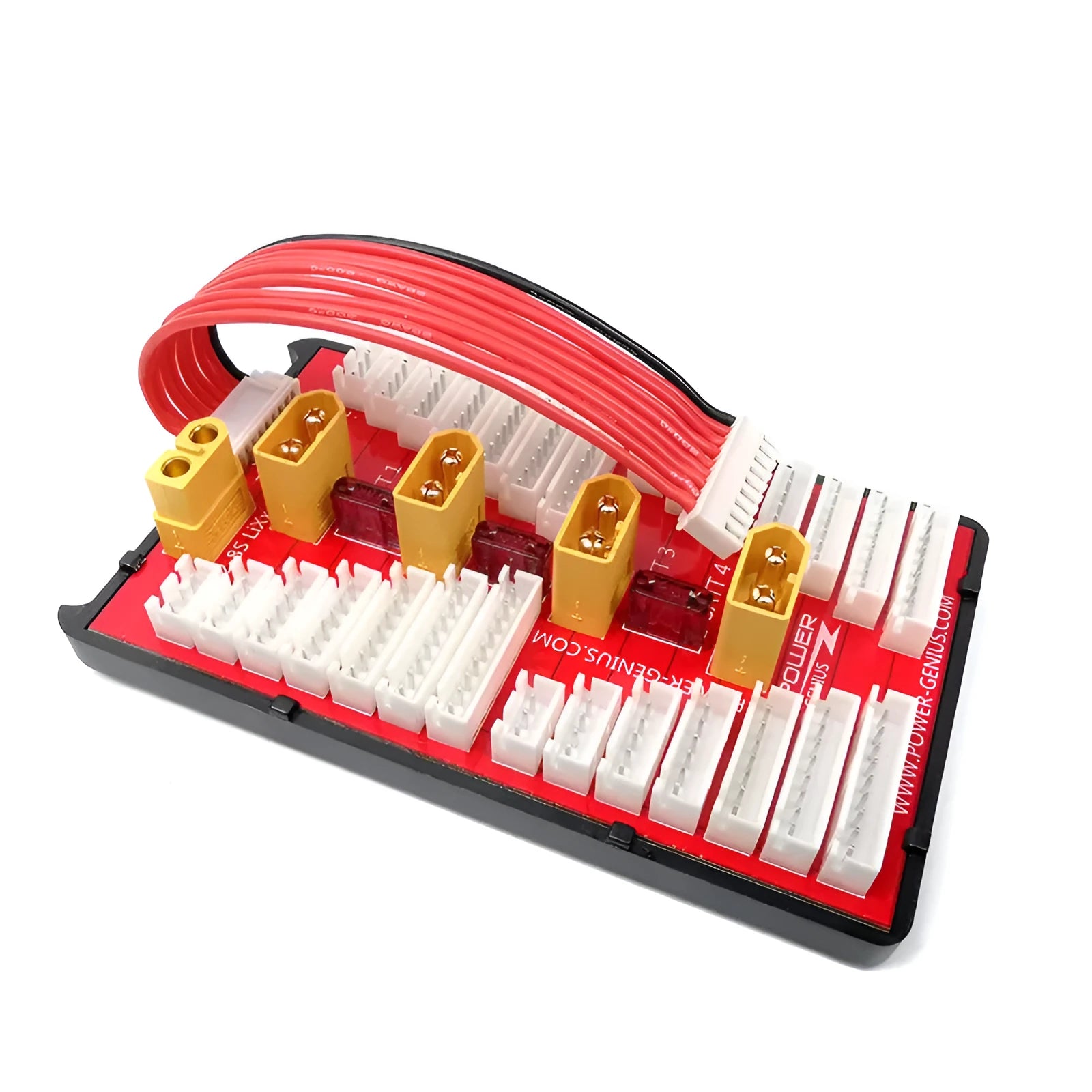

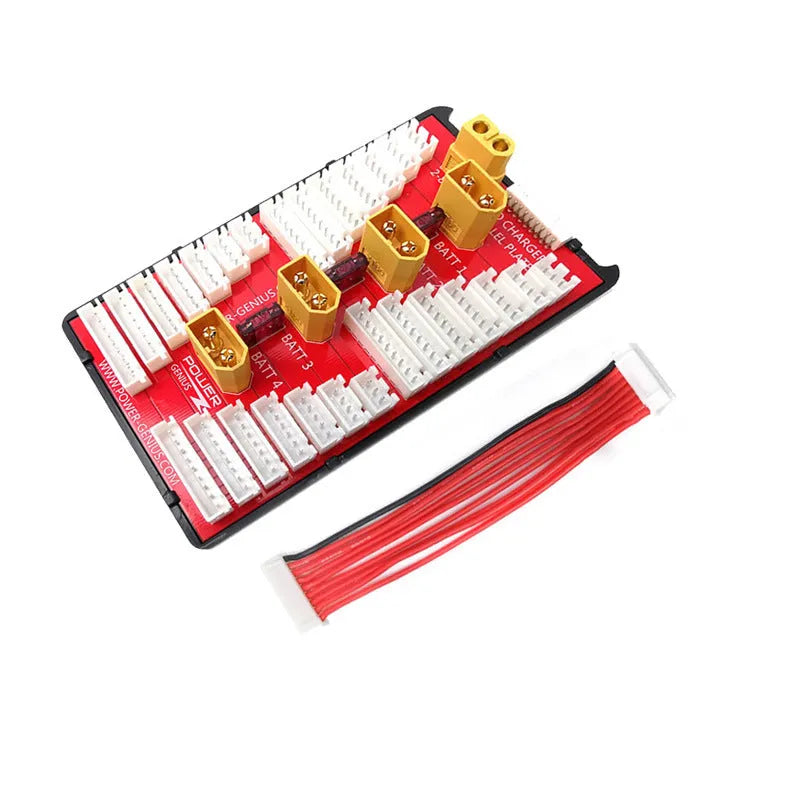

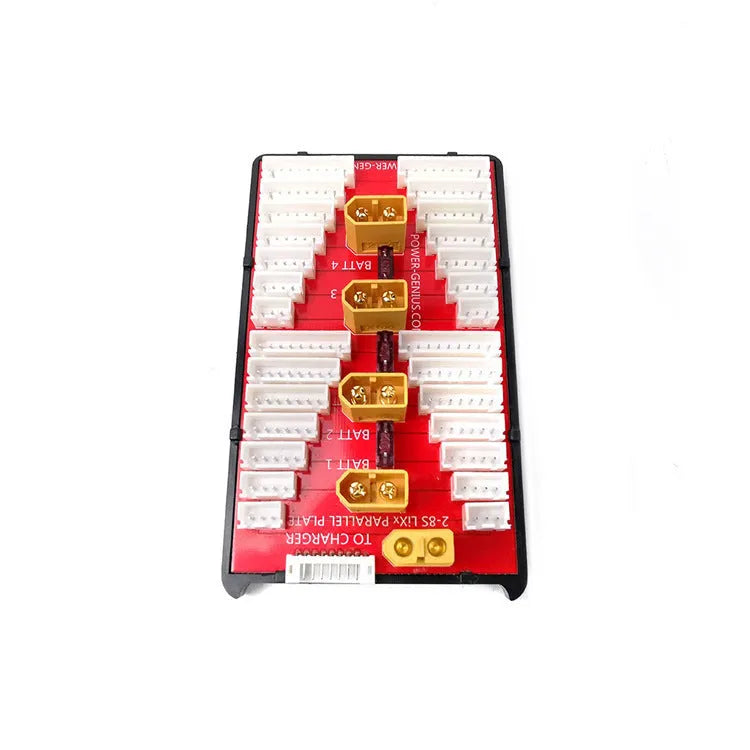

4-Way Parallel Charge Board for Simultaneous Balance Charging of 2-8S Lithium Batteries

This parallel charging expansion adapter board is designed for users of multi-cell lithium polymer (LiPo) batteries, commonly found in radio-controlled hobbies and other applications. Its primary function is to streamline the charging process by allowing up to four separate battery packs to be charged simultaneously through a single balance charger. This eliminates the need for manual battery swaps between charges, saving significant time, especially during intensive use sessions. The board is engineered with practical safety features, including protective fuses and high-grade wiring, to provide a reliable method for expanding your charger's capacity while helping to protect your valuable batteries and equipment.

Features and Construction

This board is built with components chosen for electrical performance and user safety, focusing on creating a stable platform for parallel charging.

Material and Build

The board utilises a printed circuit board (PCB) with thicker copper foil, which is designed to handle the increased electrical current involved in parallel charging, supporting a total charging current of up to 35A. All critical electrical connectors are high-quality gold-plated types, which help maintain a reliable connection and reduce resistance. The output lines for the essential balance ports are made from flexible and durable 18AWG multi-strand silicone wire, chosen for its current-carrying capacity and resistance to wear.

Size and Practical Fit

While specific physical dimensions are not provided, the board is designed as a functional accessory. Its layout accommodates connections for four distinct battery packs, each with a main discharge plug (like a T plug) and a corresponding multi-pin balance connector. The inclusion of safety silicone caps for the T plug connectors is a practical touch, allowing unused ports to be covered securely when not in use, which helps prevent accidental short circuits caused by loose metal objects.

Uses and Placement

The board serves a specific function within a charging setup, bridging your balance charger and multiple batteries.

Event or Professional Use

For competitive RC racing events, field days, or professional filming with drone fleets, time between sessions is critical. This board allows pilots or operators to queue up and charge several depleted batteries at once during a break. By reducing the total charging downtime, users can maximise active runtime. The ability to parallel charge also means a single, potentially more powerful charger can service multiple batteries, which can be a space- and cost-efficient solution compared to owning several individual chargers.

Everyday Home Use

For the hobbyist at home, this board simplifies battery management. Instead of monitoring and changing over batteries on the charger every hour, you can connect several packs from a day's flying or driving and let them charge overnight as a single batch. It is particularly useful for managing a collection of batteries with identical cell counts (e.g., all 3S or all 4S packs), turning a tedious, repetitive task into a single, set-and-forget operation.

Benefits and Buying Value

The value of this adapter lies in the tangible efficiency gains and integrated safety considerations it provides.

Reuse and Low Maintenance

As a passive electronic board with no moving parts, it requires no ongoing maintenance beyond basic care like keeping connections clean and using the protective caps. Its robust construction with fused protection is designed for repeated use over time. By effectively multiplying the utility of your existing balance charger, it adds long-term value to your charging setup without the need to purchase additional, separate charger units.

Why Choose This Product

This board offers a focused solution for a common bottleneck in using multiple LiPo batteries. The key differentiator is the inclusion of a 40A fuse between each battery group, a safety feature that helps protect against the risks of connecting packs with differing voltages. Combined with the capacity-supporting 35A-rated PCB and quality wiring, it provides a balance between performance and precaution. For anyone regularly charging more than one or two packs, the time savings and convenience become immediately apparent, making it a logical and practical addition to a charger setup.
