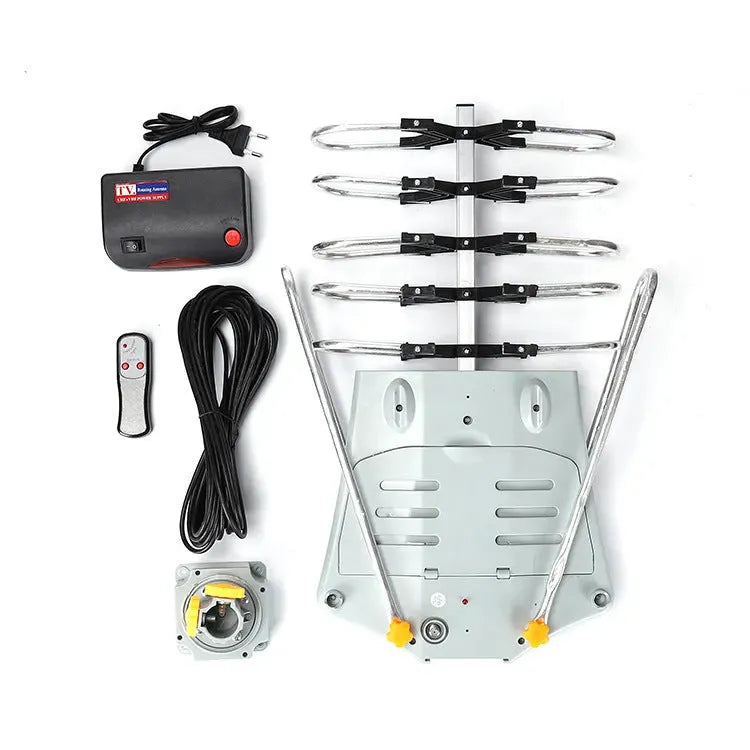

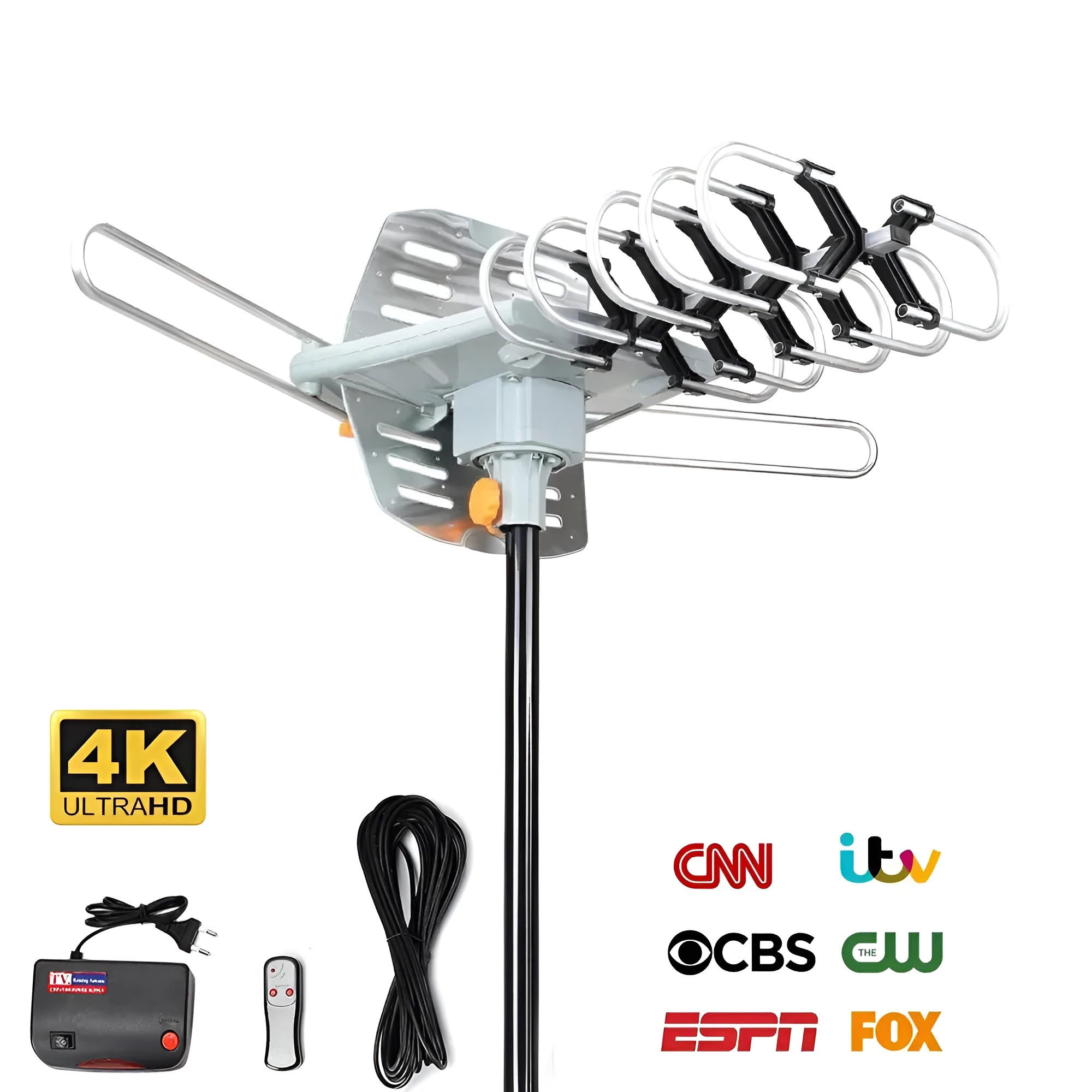

GR-1002 Rotatable Outdoor Digital Television Antenna with 28-36dB High Gain for UHF Broadcast Reception

This outdoor television antenna provides a practical solution for households experiencing weak or unstable terrestrial digital TV signals. The GR-1002 model combines a directional rotatable design with substantial 28-36dB gain to capture broadcast transmissions more effectively than basic fixed antennas. Operating across the standard UHF frequency range of 470-862MHz, it's engineered to receive digital television broadcasts where signal strength may be marginal due to distance from transmitters or local obstructions. The professional specifications including 75 ohm impedance and ≤1.5 standing wave ratio indicate design considerations for efficient signal transfer to your television equipment.

Features and Construction

The GR-1002 outdoor TV antenna incorporates several technical features aimed at improving terrestrial television reception in challenging signal environments. While specific construction materials aren't detailed in the source text, the performance specifications indicate professional-grade design considerations for outdoor installation and weather exposure.

Rotatable Directional Design

The rotatable mechanism allows you to adjust the antenna's orientation toward local transmission towers, which is crucial for maximising signal strength with directional antennas. Unlike fixed-position models, this adjustability enables fine-tuning after installation to find the optimal reception angle. This feature is particularly valuable in areas where transmitter towers aren't located in a straight line from your property or where signal reflection creates multiple reception angles.

High Gain Signal Amplification

With a gain rating of 28-36dB, this antenna provides substantial signal amplification compared to basic indoor or simpler outdoor models. This increased gain helps overcome signal attenuation caused by distance from transmitters, building materials, or atmospheric conditions. The gain range suggests the antenna incorporates multiple elements or specialised design features to capture and concentrate UHF television signals more effectively before transmission through the coaxial cable to your television equipment.

Technical Specifications

The GR-1002 operates within precise technical parameters designed for compatibility with digital terrestrial television infrastructure. These specifications determine how effectively the antenna receives broadcast signals and transfers them to your television receiver with minimal quality degradation.

UHF Frequency Coverage

Covering the 470-862MHz frequency range ensures compatibility with digital terrestrial television broadcasts across most regions, as this spectrum accommodates UHF channels used for digital TV transmission. This frequency coverage allows the antenna to receive standard definition and high definition digital television signals where available. The specific frequency range indicates optimisation for the television broadcast portion of the UHF spectrum rather than VHF or other frequency bands.

Impedance and Signal Transfer

The 75 ohm impedance matches standard television equipment and coaxial cables, ensuring efficient signal transfer with minimal reflection loss. This industry-standard impedance prevents signal degradation that can occur when equipment impedance doesn't match properly. The ≤1.5 standing wave ratio further indicates efficient power transfer from antenna elements to your television equipment, reducing signal loss that might otherwise occur at connection points.

Installation and Usage

Proper installation and usage are essential for achieving the performance benefits indicated by the GR-1002's technical specifications. While the source text doesn't provide comprehensive installation instructions, certain placement and connection principles apply based on the product's design characteristics.

Outdoor Placement Advantages

As an outdoor antenna, the GR-1002 benefits from placement away from indoor signal obstructions like walls, electrical wiring, and electronic devices that can interfere with television reception. Outdoor installation typically provides clearer line-of-sight to transmission towers and reduces signal attenuation caused by building materials. The design presumably incorporates weather-resistant construction appropriate for outdoor mounting, though specific weatherproofing features aren't detailed in the available specifications.

Connection and Alignment

Connection requires standard 75 ohm coaxial cable between the antenna and your television or set-top box. The rotatable design necessitates initial testing of different orientations to identify the position providing strongest signal reception before securing the antenna permanently. This alignment process may involve checking signal strength indicators on your television or set-top box while gradually rotating the antenna to find optimal positioning for your specific location relative to broadcast towers.
