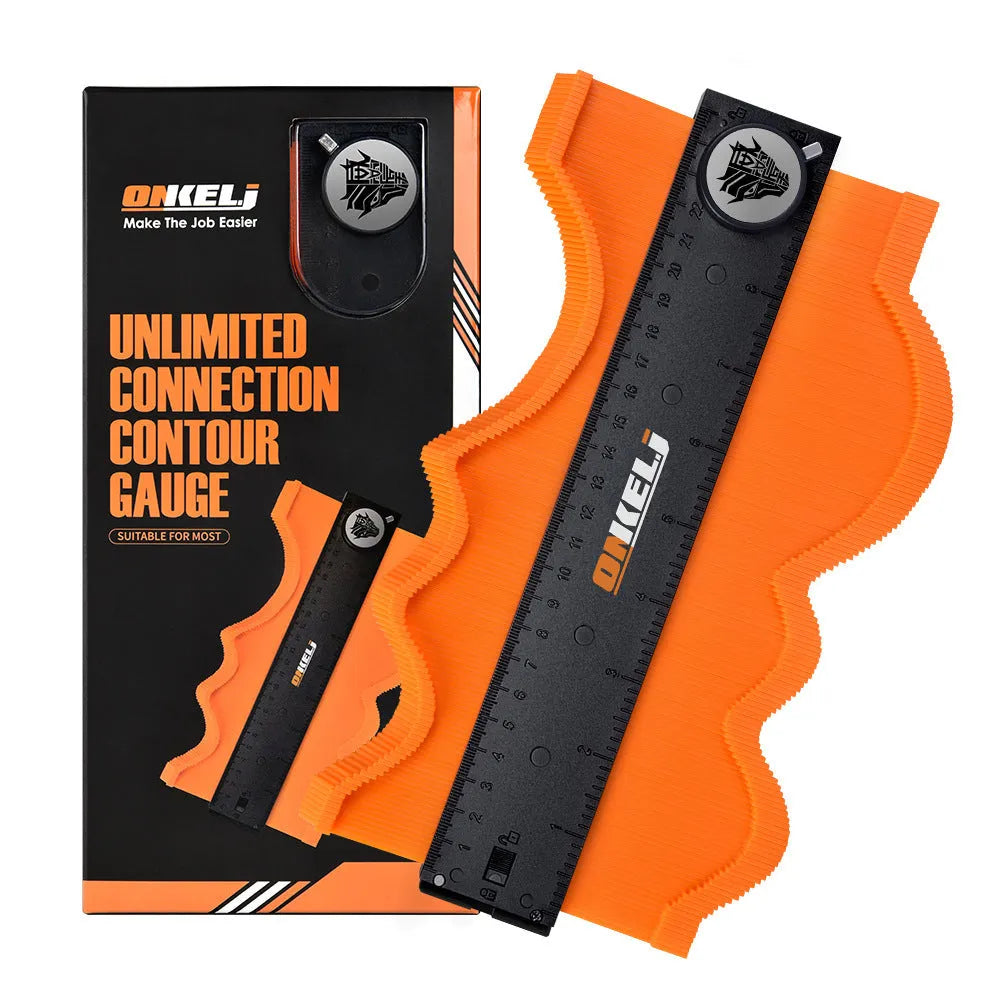

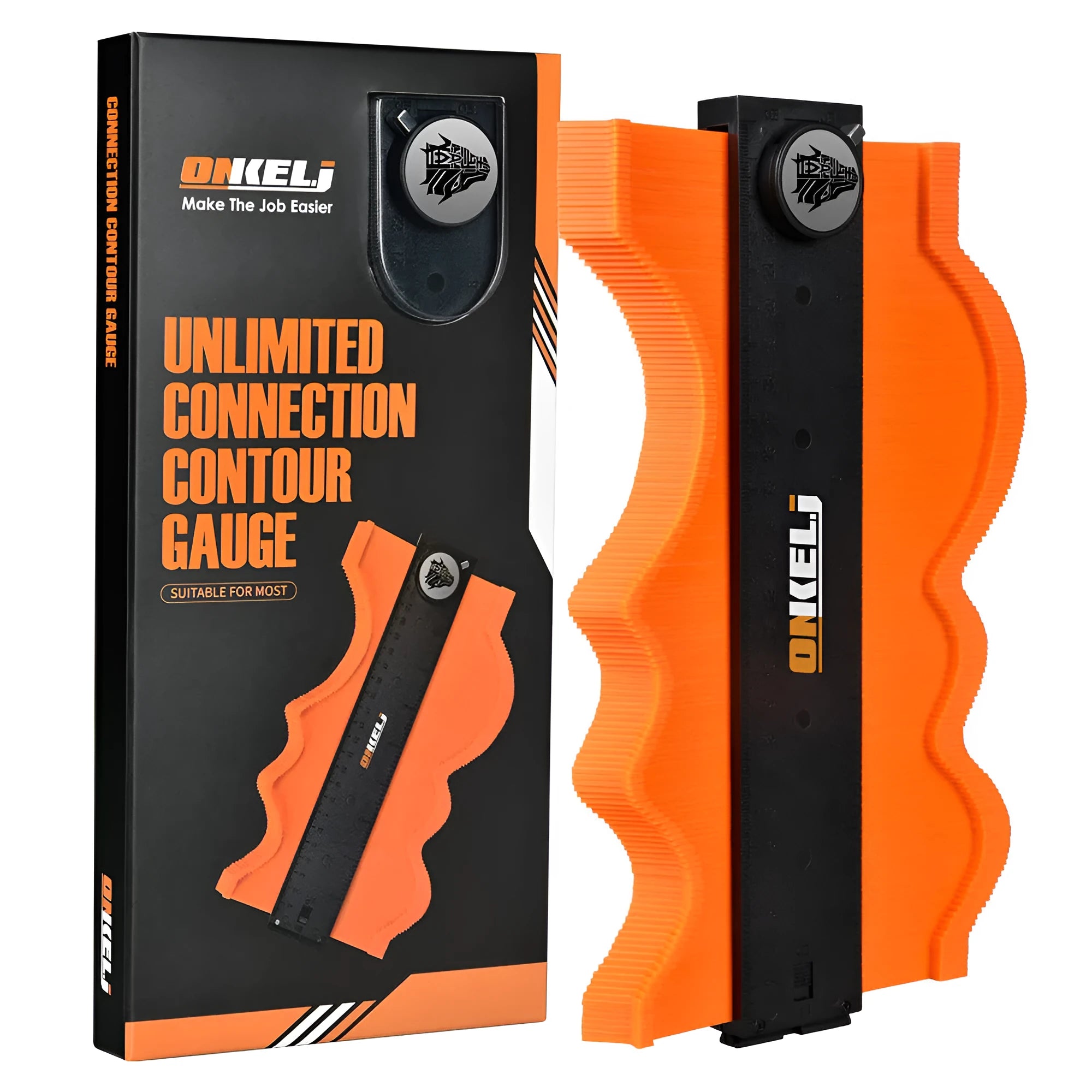

10-Inch Contour Gauge with Infinite Stitching for Precise Profile Measurement

Accurately transferring irregular shapes and profiles is a fundamental challenge in many fitting and installation tasks, from laying floor tiles to fitting skirting boards or cabinetry. This contour gauge, often called a profile tool or radian ruler, is designed to provide a practical, mechanical solution. With a 10-inch (approx. 254mm) measurement range and a unique infinite stitching feature, it allows you to tackle both compact and extended contours. The combination of ABS plastic and stainless steel in its construction results in a tool that is both durable enough for site use and lightweight for easy handling. Its core promise is a straightforward one: capture a shape with 1mm accuracy and lock it in place for reliable transfer.

Features and Construction

The design of this gauge prioritises functional accuracy and user control. Its construction and locking mechanism are central to its performance, ensuring the profile you capture is the one you can work with.

Material and Build

The tool utilises two primary materials. The main body is fashioned from ABS plastic, a polymer known for its good impact resistance and rigidity, which helps maintain the tool's shape under pressure. The moving measuring pins and likely the locking mechanism incorporate stainless steel. This choice provides smooth, consistent movement for the pins and resists corrosion, which is important for a tool that may be used in various environments. This material pairing results in a device that is robust without being excessively heavy.

Size and Practical Fit

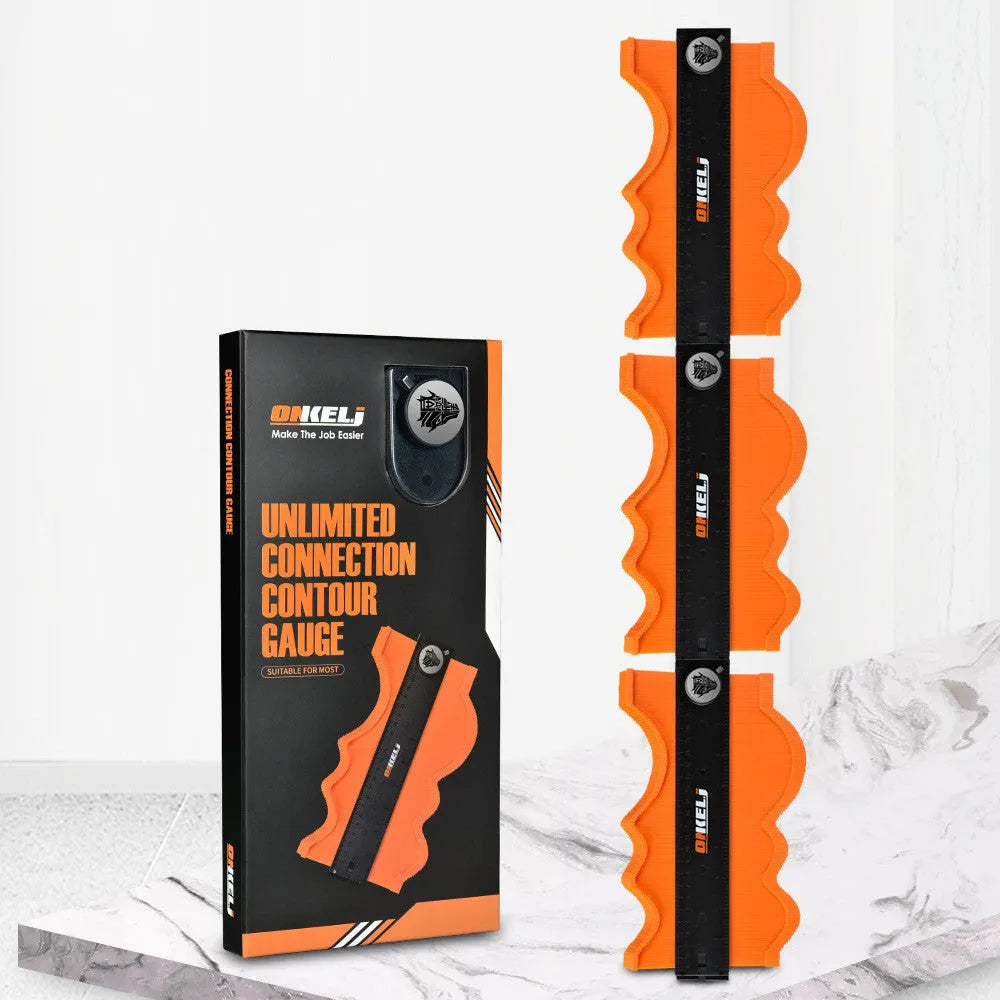

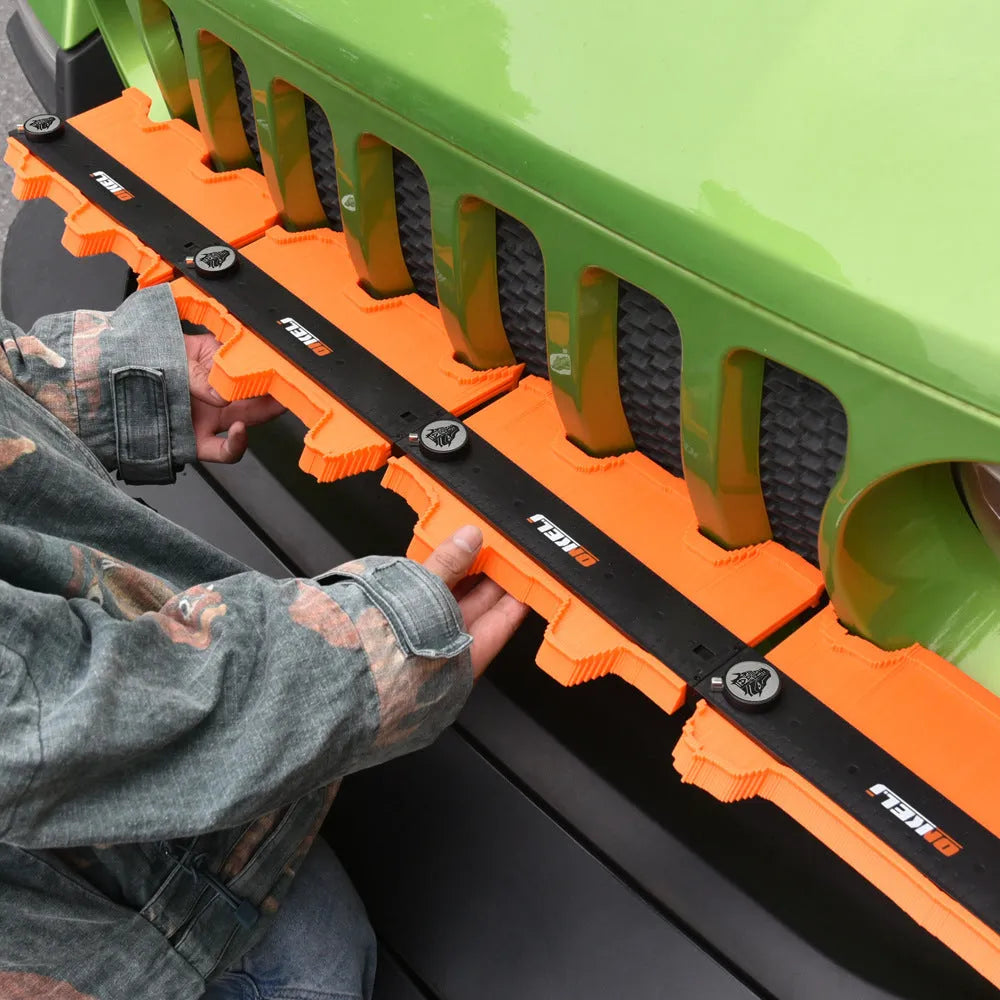

With overall dimensions of 265mm long, 130mm wide, and 27mm thick, the gauge is a compact, hand-held instrument. The 10-inch effective measuring length refers to the span of the pins that conform to the shape. The 'infinite stitching' feature is particularly valuable for longer or non-linear profiles, such as a long, wavy skirting board or a large, irregular tile cut-out. It enables you to take a measurement, lock it, move the tool along the profile, and take the next measurement, effectively 'stitching' multiple 10-inch sections together to map a much larger area accurately.

Uses and Placement

This tool finds its place wherever an exact copy of an uneven surface or object profile is needed. It bridges the gap between complex shapes and the straight cuts of most workshop tools.

Event or Professional Use

For tradespeople like tilers, carpenters, and kitchen fitters, time is money and accuracy is paramount. This gauge allows for quick, precise profiling of spaces around pipes, ducts, or existing fixtures before cutting expensive materials like tiles, laminate flooring, or worktops. The lockable belt ensures the measurement doesn't shift between taking the profile and marking the material, reducing errors and wasted stock. The 1mm accuracy is sufficient for most professional applications where a small margin for sealant or finishing is acceptable.

Everyday Home Use

For the competent DIY enthusiast, this tool opens up projects that might otherwise seem daunting. Installing a bathroom vanity unit against an uneven wall, fitting laminate flooring around a fireplace hearth, or creating a custom shelving unit that fits a sloped ceiling all become more achievable. The gauge provides a simple, repeatable method to get the shape right the first time, increasing confidence and improving the finished appearance of home improvement projects.

Benefits and Buying Value

The value of this contour gauge lies in its ability to prevent material waste, improve fit, and simplify complex measuring tasks through a purely mechanical process.

Reuse and Low Maintenance

As a non-electronic, mechanical tool, it requires virtually no maintenance beyond keeping it clean and checking that the lock mechanism functions smoothly. There are no batteries to replace or digital components that can fail. Its durable ABS and stainless steel construction means it can be used repeatedly on multiple projects over many years, residing in a toolbox until the next irregular shape presents itself. This longevity makes it a cost-effective addition to any toolkit.

Why Choose This Product

When considering a profile gauge, the specific combination of a 10-inch span, infinite stitching, and a positive lock sets this model apart from simpler, smaller versions. The 10-inch length offers a useful balance between capacity and manageability, while the stitching feature future-proofs it for larger tasks. The locking mechanism is critical—without it, a captured profile can easily be lost during transfer. This tool provides a complete, reliable solution for its intended purpose, backed by clear specifications on its materials, accuracy, and size.
