PUV-W3 Three-Way Bookshelf Speaker Crossover with 200W Power Handling for DIY Audio Projects

The PUV-W3 bookshelf speaker crossover provides a high, mid, and low three-way signal splitting solution for audio enthusiasts building custom speaker systems. With a power rating of 200W and impedance range of 4-8 ohms, this crossover is designed to handle moderate to high-output amplification while ensuring each driver receives only the frequencies it handles best. The unit measures 100mm by 65mm and weighs 108g per piece, making it compact enough for integration into bookshelf or standmount speaker cabinets. Available in four models with slightly different low-frequency crossover points, the PUV-W3 gives builders flexibility to tune their speaker’s performance.

Features and Construction

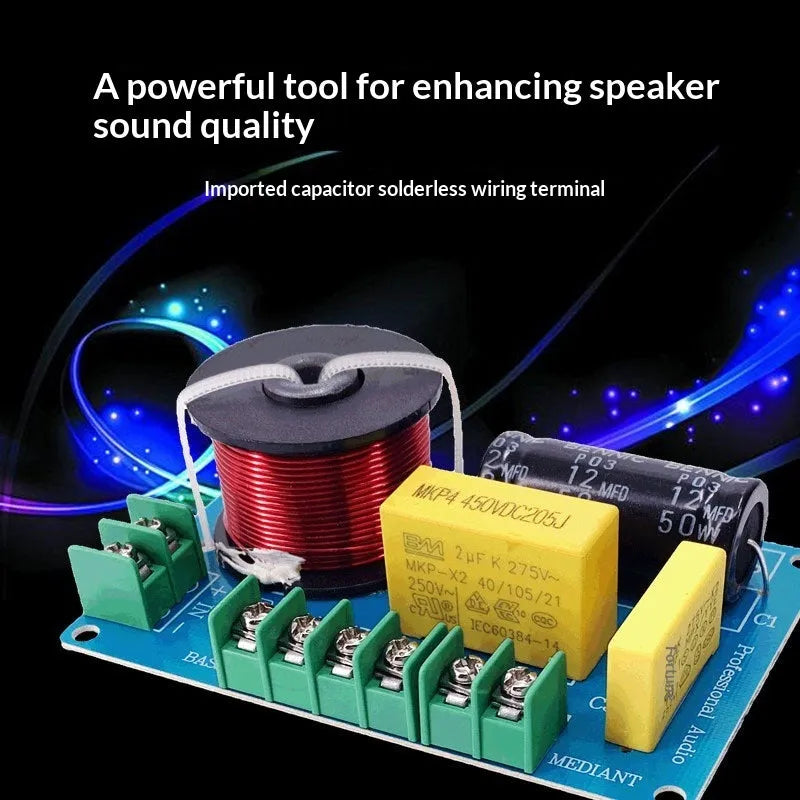

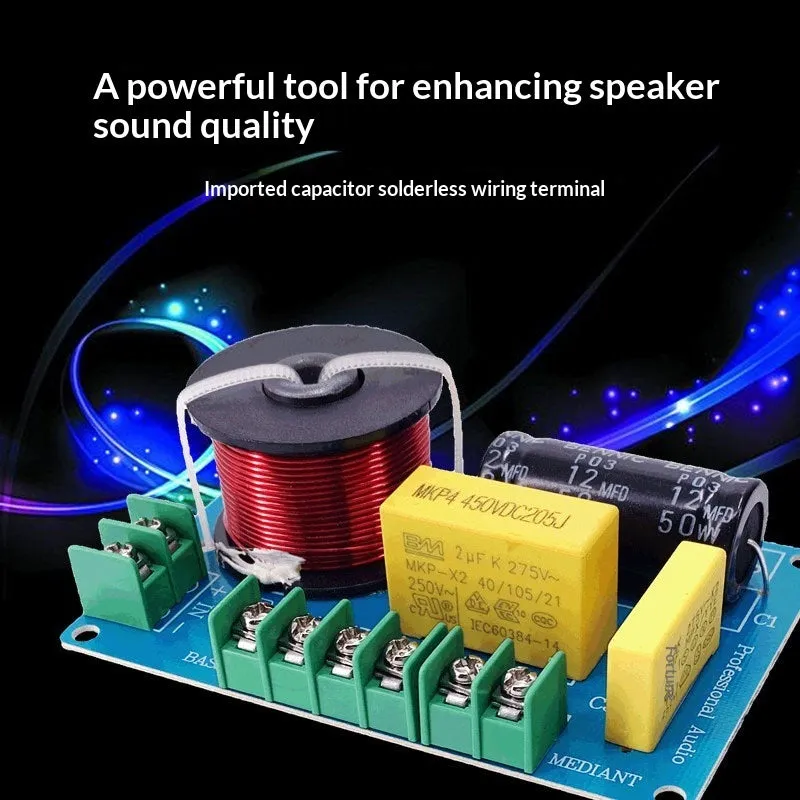

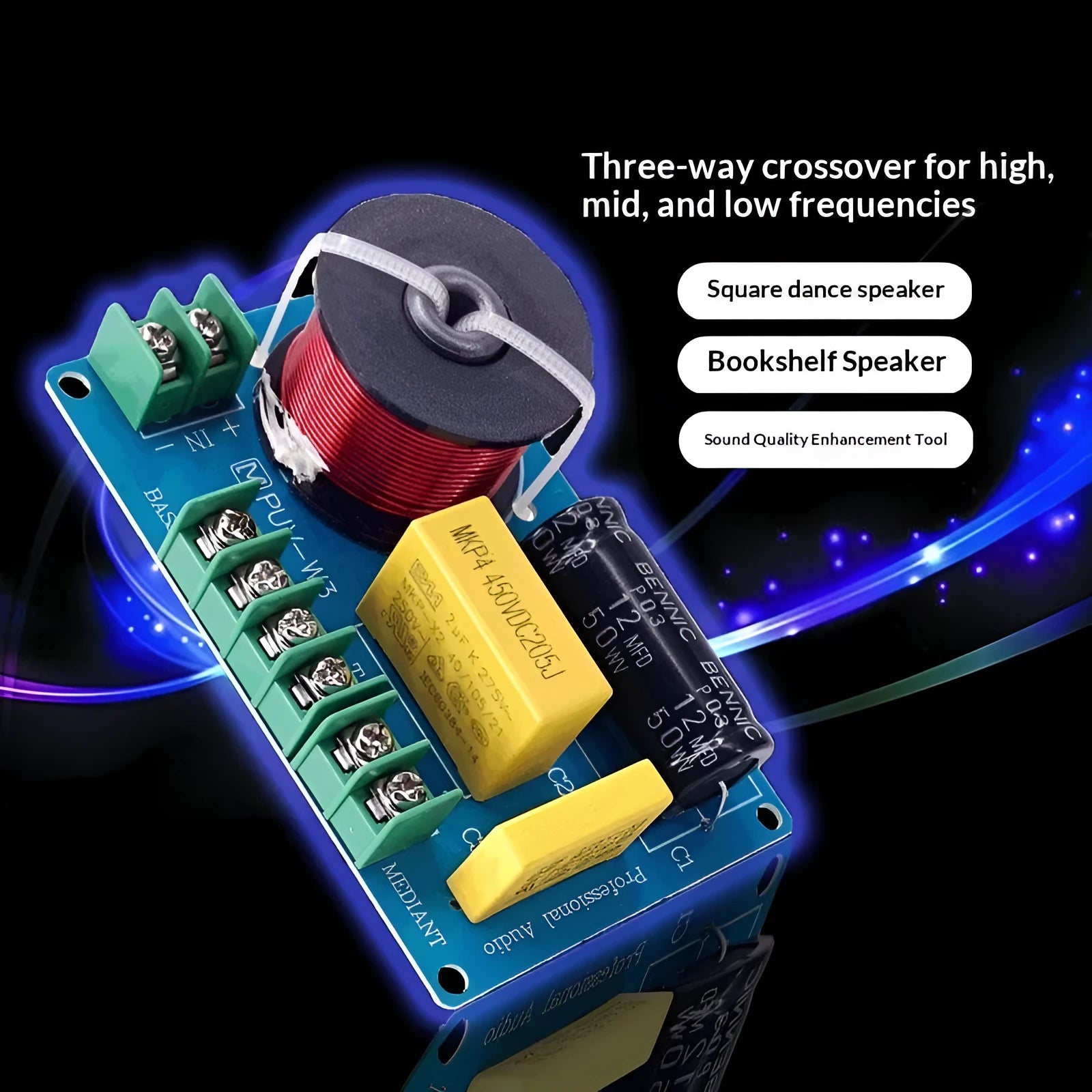

This crossover is built around straightforward electronic components that split the audio signal into three bands. Each model variant offers a different low-frequency crossover point while maintaining a consistent high-frequency division at 6000Hz.

Frequency Division Points

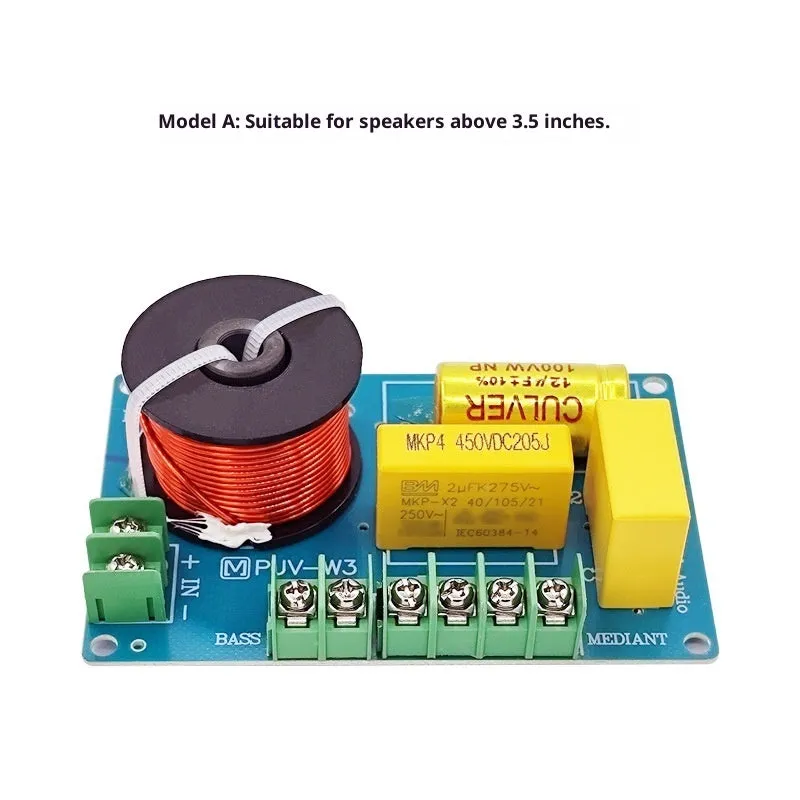

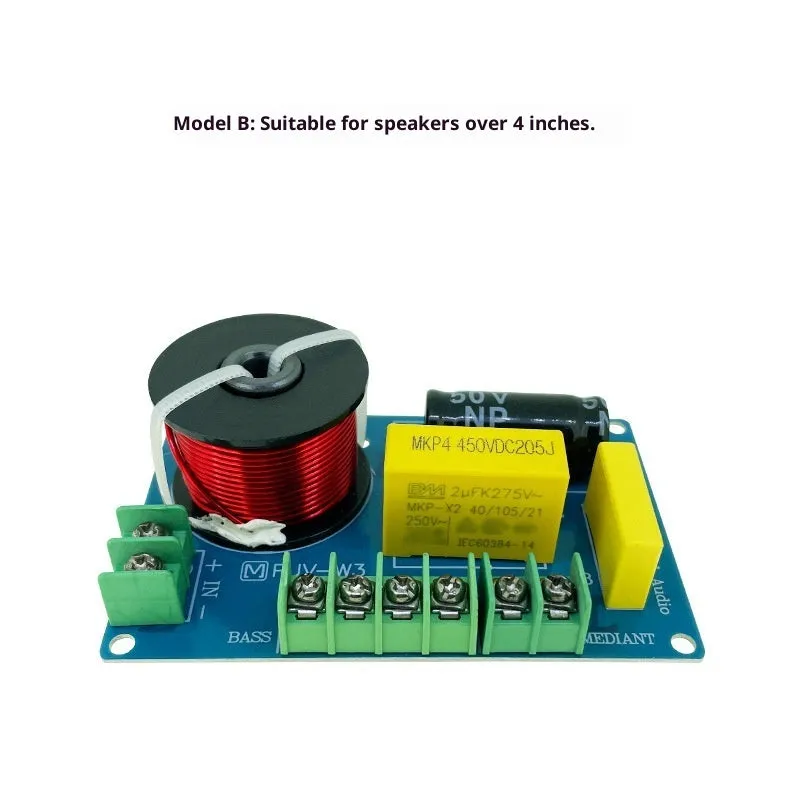

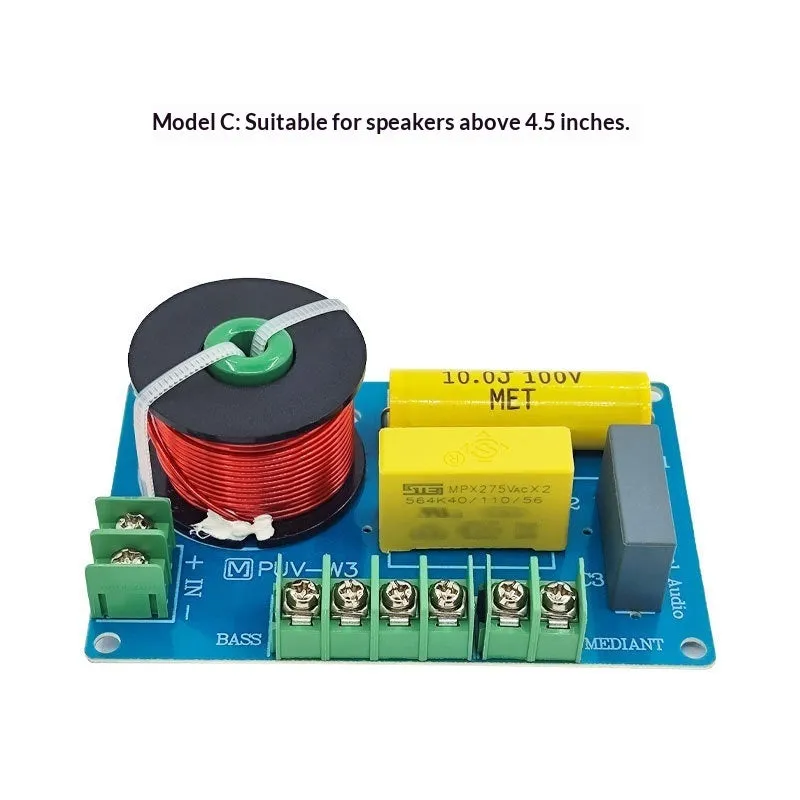

Model A uses a low crossover at 860Hz, Model B at 800Hz, Model C at 870Hz, and Model D at 850Hz, with all models splitting at 6000Hz for the high band. These points allow the crossover to direct bass to the woofer, midrange to a dedicated driver, and treble to a tweeter, reducing intermodulation distortion and improving clarity.

Power and Impedance Handling

Rated for 200W continuous power and compatible with 4-8 ohm speakers, this crossover suits a wide range of home audio amplifiers and drivers. The power handling ensures it can sustain average listening levels without overheating or signal degradation, making it reliable for extended use.

Compact Physical Design

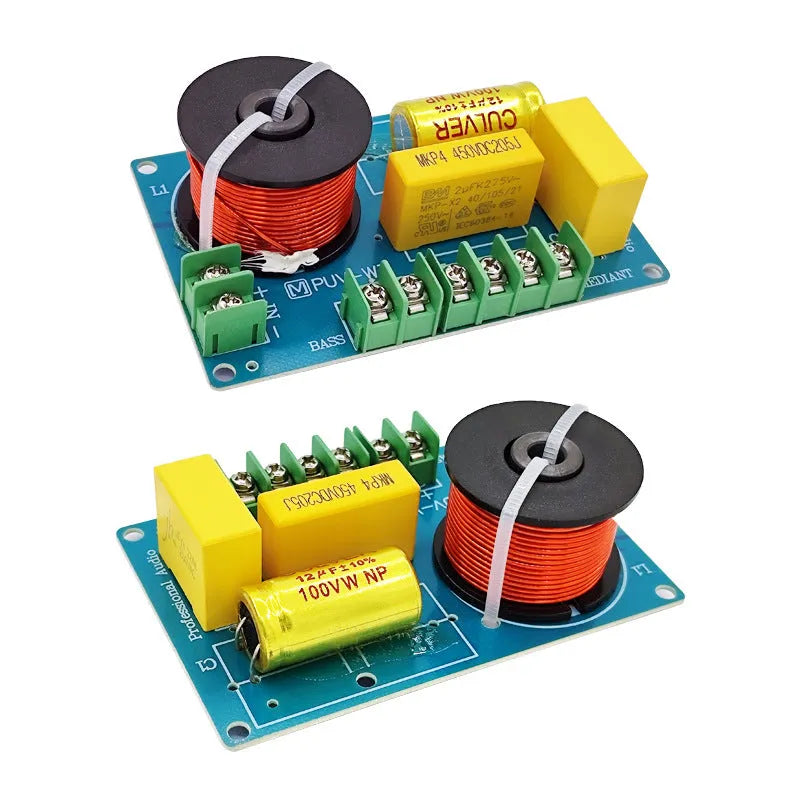

Each crossover board measures 100mm in length and 65mm in width, weighing only 108g. This small footprint allows easy mounting inside typical bookshelf speaker enclosures without occupying excessive internal volume, preserving cabinet acoustics.

Uses and Placement

The PUV-W3 crossover is intended for use in DIY three-way speaker systems, particularly bookshelf or compact designs where space is limited. It can also serve as a replacement component in existing speaker builds.

DIY Speaker Building

Hobbyists and custom speaker designers can incorporate this crossover to separate frequencies for dedicated woofers, midranges, and tweeters. The multiple model options enable tuning the low crossover point to match specific driver characteristics.

Upgrading Existing Speakers

For those modifying or repairing older speakers, this crossover offers a straightforward drop-in replacement that meets standard impedance and power requirements. Its compact size simplifies installation into existing cabinets.

Benefits and Buying Value

Choosing the right crossover model helps optimise speaker performance. The PUV-W3 provides a practical balance of power handling, size, and frequency flexibility without requiring complex setup.

Model Selection Guidance

Each model variant caters to different driver configurations. Model B with its 800Hz low crossover suits larger woofers, while models A, C, and D around 850-870Hz work well with smaller mid-bass drivers. Users should match the crossover point to their chosen drivers’ natural frequency response.

Value for DIY Enthusiasts

This crossover offers a dedicated three-way solution at a component-level price point. Its standard 4-8 ohm compatibility and 200W rating make it a versatile foundation for many bookshelf speaker projects, reducing the need for additional external processing.
